Low-profile Stepper Driver Mini

China Quality Low-profile Stepper Driver Mini Manufacturers and Suppliers. LICHUAN® is Low-profile Stepper Driver Mini manufacturer and supplier in China.

Send Inquiry

Product Description

LICHUAN® is one of the famous China Low-profile Stepper Driver Mini manufacturers and suppliers. Our factory specializes in manufacturing of Low-profile Stepper Driver Mini. Welcome to buy Low-profile Stepper Driver Mini from us. Every request from customers is being replied within 24 hours.

Product Introduction

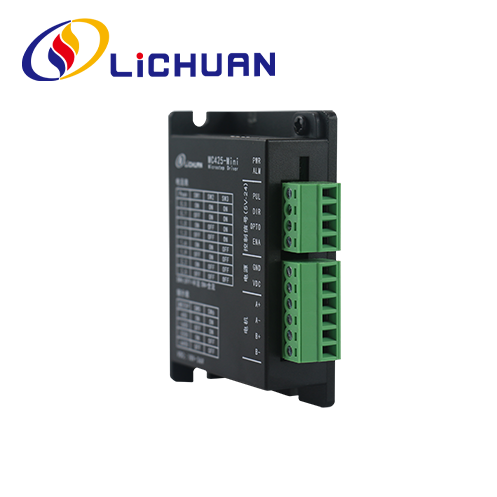

Based on the latest ARM chip technology scheme, the MC425-Mini digital low-voltage step motor drives are generally provided with two-phase 35, 39 and 42 step motor series for achieving excellent medium and low velocity performance. Any subdivision within 400~6400 and any current within the rated range can be set for the application in most small-sized equipment. A built-in micro-subdivision technology is adopted, which can help to achieve the effect of a high subdivision even under a low subdivision. The running at a middle or low velocity is very stable, and the drive motor noise is very low.The driver can be match for 2 phase Nema17 open loop stepper motor.

Functional characteristics

● Voltage input range: DC18V~36V
● Max. peak current: 2.5A
● Subdivision range: 400~6400ppr
● Pulse form: Pulse + direction
● Pulse response frequency: 0~200KHz
● Motor parameter self-regulation
● Provided with overvoltage, overcurrent and t.

MC425Emini Features

● Voltage input range: DC18V～36V
● Maximum peak current: 2.5A
● Subdivision range: 400～6400ppr
● Pulse form: pulse + direction
● Impulse response frequency: 0～200KHz
● Motor parameter auto-tuning function With protection functions such as over voltage, over current, tracking error out of tolerance, etc.
● More details Pls check driver manual on “download” catalog.

Operating environment and parameters

● Storage temperature: -20°C~65°C
● Operating temperature: 0°C~50°C
● Operating humidity: 40~90%RH (without condensation)
● Vibration frequency: < 0.5G (4.9m/s2), 10~60 Hz (non-continuous operation).
● Places with dust, oil stain, corrosive gases, high humidity and vibration should be avoided. Combustible gases and conductive dust should be prohibited

Technical parameter

● Storage temperature: -20°C~65°C
● Operating temperature: 0°C~50°C
● Operating humidity: 40~90%RH (without condensation)
● Vibration frequency: < 0.5G (4.9m/s2), 10~60 Hz
(non-continuous operation).
● Places with dust, oil stain, corrosive gases, high humidity and vibration should be avoided. Combustible gases and conductive dust should be prohibited

Main applications

Suitable for automatic equipment and instruments in various motion control fields such as electronic processing and detection, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machines, markers, cutters, apparel plotters, medium-sized CNC

Technical parameter

● Voltage input range: DC24V～110V/AC18V～80V
● Maximum peak current:7.2A
● Insulation resistance: 500M
● With overcurrent, overvoltage and other protection functions.

Environmental parameters

● Storage temperature:-20° ℃~80 ℃
● Operating temperature:0 ℃~55 ℃
● Operating humidity:90%RH (non-condensing)
● Vibration frequency: less than 0.5G(4.9m/s2)10Hz~ 60Hz(discontinuous operation)
● Avoid dust, oil stains, corrosive gases, places with too much humidity and too strong vibration, and prohibit flammable gas and conductive dust

Drive function description

Drive function	Instructions
Speed range setting	The four DIP switches SW5~SW8 are used to set the speed range of the drive. There are 16 speed ranges in total. When the user sets the speed, the drive should be stopped first. For the setting of the specific speed range, please follow the instructions on the drive panel.
Output current setting	8 output currents can be set for the Driver through 3 dial switches SW1~SW3.See driver panelinstruction for output current settings.
Automatic half flow function	Automatic half current function can be set for the Driver through switch SW4. OFF means that quiescent current is set to half of operating current; ON means that quiescent current and dynamic current are the same. SW4 shall be set as OFF for general use to reduce heat generation of the motor and the driver and to improve reliability. About 0.3s after pulse train stops, current will automatically reduce 50%(actual value 55%) and theoretically, heat generation will reduce 65%.
Signal interface	PUL+ and PUL- are the motor start control terminals, which support 5V or 24V switching signals; DIR+ and DIR- are the positive and negative terminals of the direction signal; ENA+ and ENA- are the positive and negative terminals of the enable signal.
Motor interface	A+ and A- connect to positive and negative terminals of A phase winding of stepper motor; B+ and B- connect to positive and negative terminals, When A and B phase windings are switched, the Motor direction on will be reversed;
Power connector	Use AC/DC power supply, the voltage range is 24~110VDC or 18~80VAC, the terminals are not divided into positive and negative poles, the recommended power supply is DC 48V, and the power is greater than 250W.
Indicator light	There is 1 green indicator light and 1 red indicator light on the Driver. The green one is power indicator light, it illuminates when the Driver is connected to power supply; the red one is failure indicator light, it illuminates when over-voltage or over-current failure occurs. Red indicator light goes off after failure is eliminated. Failure of the Driver can only be eliminated by re-connecting to power supply and reusing
Installation Notes	Dimensions of the Driver:150x97.5x52.6mm, in stallation pitch of holes: 138.5mm. Both horizontal and vertical installations can be selected (vertical installation is suggested). The Driver shall be installed closely against metal cabinet for heat dissipation.

Parameter setting

The speed range, dynamic and half/full current of the MC860P-2 drive can be set as follows through the 8-bit DIP switch

Working current setting

Output peak current	Output average current	SW1	SW2	SW3
2.4A	2.0A	on	on	on
3.08A	2.57A	off	on	on
3.77A	3.14A	on	off	on
4.45A	3.71A	off	off	on
5.14A	4.28A	on	on	off
5.83A	4.86A	off	on	off
6.52A	5.43A	on	off	off
7.2A	6.0A	off	off	off

Installation size (unit: mm)

Speed range setting

SPD	SW5	SW6	SW7	SW8
60	on	on	on	on
90	off	on	on	on
120	on	off	on	on
150	off	off	on	on
180	on	on	off	on
240	off	on	off	on
300	on	off	off	on
360	off	off	off	on
420	on	on	on	off
480	off	on	on	off
540	on	off	on	off
600	off	off	on	off
720	on	on	off	off
840	off	on	off	off
960	on	off	off	off
1200
