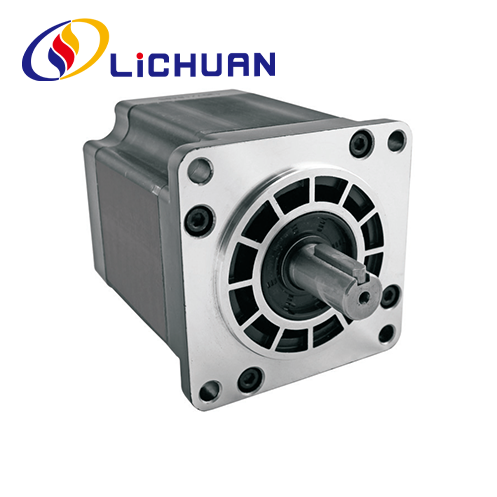

110 Series 3 Phase Nema 42 Hybrid Stepper Motor
LICHUAN® is 110 Series 3 Phase Nema 42 Hybrid Stepper Motor manufacturers and suppliers in China who can wholesale 110 Series 3 Phase Nema 42 Hybrid Stepper Motor. We can provide professional service and better price for you. If you interested in 110 Series 3 Phase Nema 42 Hybrid Stepper Motor products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 110 Series 3 Phase Nema 42 Hybrid Stepper Motor from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.
110 series 3 phase Nema 42 hybird stepper motor , the use of high-quality raw materials and high-specification permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise, good dynamic characteristics, quality and reliable. Motor length 128mm ~ 219mm between the torque range: 8N.m ~ 20N.m,motor shaft diameter 19mm. they are are designed to match with Lichuan’s 3 phase stepping drivers LC3722D driver , pls check hybrid stepper motor driver on catalog if u wanna know more driver information.
Electrical Performance Parameters
| Item | Spedfications |
| Step Angle Accuracy | ±5%(Full Step) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80℃ max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~*50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450gload) |
| Allowable Thrust Load | 0.08mm Max. (450gload) |
| Radial Max Load | 220N(20mm from flange surface) |
| Shaft Max Load | 60N |
| Series |
Step Angle(") |
Motor Length(mm) |
Holding Torque(N.m) |
Rated Current(A) |
Rotor Inertia(g.cm²) |
Phase Resistance(Q) |
Phase Inductance(mH) |
Matched Driver |
Lead Wire(No.) |
Motor Weight (Kg) |
| LC31112 | 1.2 | 128 | 8.0 | 4.3 | 6000 | 1.25 | 4.49 | LC3722A | 3 | 5.0 |
| LC31115 | 1.2 | 152 | 12 | 6.0 | 9720 | 1.89 | 8.34 | LC3722A | 3 | 6.6 |
| LC31118 | 1.2 | 186 | 16 | 6.4 | 13560 | 1.89 | 8.73 | LC3722A | 3 | 9.0 |
| LC31122 | 1.2 | 219 | 20 | 6.9 | 17400 | 1.859 | 7.26 | LC3722A | 3 | 11.1 |
Above are representative products. Products can be customized!
Shape and installation size(unit:mm)
Shaft Mode of Motor
| Model |
Shaft Diameter(mm) |
Shaft Extension(mm) |
Shaft Length(mm) |
| LC31112 | φ19 | Keyway 6x 30 | 40 |
| LC31115 | φ19 | Keyway 6x30 | 40 |
| LC31118 | φ19 | Keyway 6x30 | 40 |
| LC31122 | φ19 | Keyway 6x 30 | 40 |
Curves of Torque Frequency Characteristics
Motor Wirin Diagram
Application Wiring Diagram
A complete steppr motor control system should include the prduct shown below
Lichuan Factory Production Products Machine
-
Carving Machine -
Coating Equipment -
Fiber laster Marking Machine -
Screwing Machine -
Testing Machine -
UV Printer
-
Automatic Soldering Machine -
Holding Torque Testing Machine -
Screw Machine -
Oscillograph Machine
Industry Applications
-
Robotic Arm -
Laser Cutting Machine
-
3D Printing -
CNC Machine -
Automatic Assertmbly -
Engraving Machine
