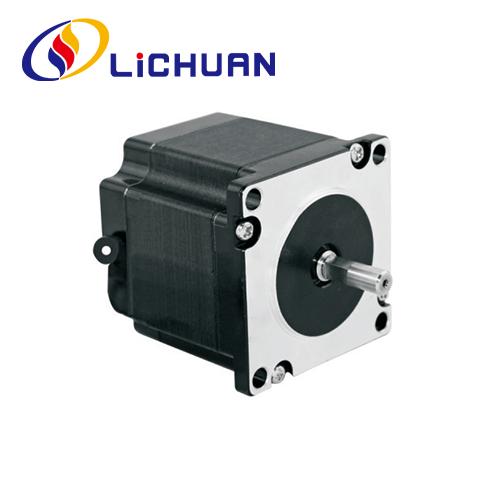

57 Series 3 Phase Nema 23 Hybird Stepper Motor
LICHUAN® 57 Series 3 Phase Nema 23 Hybird Stepper Motor have characteristic design & practical performance & competitive price, for more information on the 57 Series 3 Phase Nema 23 Hybird Stepper Motor, please feel free to contact us.
Send Inquiry
Product Description
LICHUAN® warmly welcome you to wholesale 57 series 3 phase Nema 23 hybird stepper motor Series from our factory. Our products have CE certified and currently have a large amount of factory inventory. Lichuan factory have more than 14 years production experience .We are support OEM&ODM ,We will provide you with good service and factory discounted prices. We welcome more distributors to join LICHUAN.
57 series 3 phase Nema 23 hybird stepper motor, the use of high-quality raw materials and high-specification permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise, good dynamic characteristics, quality and reliable. Motor length 66mm ~ 150mm between the torque range: 0.45N.m ~ 2.0N.m,motor shaft diameter 6.35/8mm. 57 series 3 phase Nema 23 hybird stepper motor can be match for 4 type driver:RS485. Canopen. Ethercat. Pulse control drivers. they are are designed to match with Lichuan’s 2 phase stepping drivers 3MC580 and mini driver , pls check hybrid stepper motor driver on catalog if u wanna know more driver information.
Electrical Performance Parameters
| Item | Spedfications |
| Step Angle Accuracy | ±5%(Full Step) |
| Resistance Accuracy | ±10%(20℃) |
| Inductance Accuracy | ±20%(1KHZ) |
| Temperature Rise | 80C max(rated current, 2 phase power on) |
| Ambient Temperature | -20℃~*50℃ |
| Insulation Resistance | 100MQMin 500VDC |
| Dielectric Strength | 500V AC 1 minute |
| Allowable Radial Load | 0.02mm Max. (450g load) |
| Allowable Thrust Load | 0.08mm Max. (450g load) |
| Radial Max Load | 75N (20mm from flange surface) |
| Shaft Max Load | 15N |
| Series |
Step Angle() |
Motor Length(mm) |
Holding Torque(N.m) |
Rated Current(A) |
Phase Resistance(Q) |
Phase Inductance(mH) |
Rotor Inertia(g.cm²) |
Matched Driver |
Lead Wre(No.) |
Motor Weight (Kg) |
| LC57HS341 | 1.2 | 40.5 | 0.45 | 5.2 | 100 | 0.242 | 0.22 | 3MC580 | 3 | 0.5 |
| LC57HS355 | 1.2 | 55 | 0.9 | 5.6 | 220 | 0.24 | 0.267 | 3MC580 | 3 | 0.75 |
| LC57HS378 | 1.2 | 78 | 1.5 | 5.8 | 380 | 0.29 | 0.39 | 3MC580 | 3 | 1.1 |
| LC57HS3103 | 1.2 | 103 | 2.0 | 5.8 | 530 | 0.376 | 0.5 | 3MC580 | 3 | 1.57 |
Above are representative products. Products can be customized!
Shape and installation size(unit:mm)
Shaft Mode of Motor
| Model |
Shatt Diameter(mm) |
Shaft Extension(mm) |
Shaft Length(mm) |
| LC57HS341 | 中6.35 | D-cut 0.5 X 10 | 21 |
| LC57HS355 | φ8 | D-cut 0.5X10 | 21 |
| LC57HS378 | φ8 | Keyway 3x15 | 21 |
| LC57HS3103 | φ8 | Keyway 3x15 | 21 |
Curves of Torque Frequency Characteristics
Motor Wirin Diagram
Application Wiring Diagram
A complete steppr motor control system should include the prduct shown below
