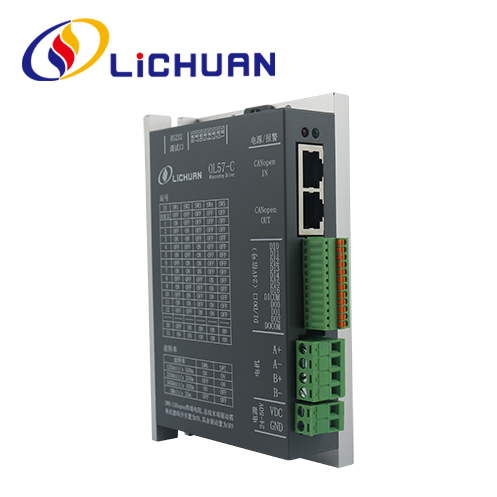

CAN Open Stepper Driver For Industrial Automation
LICHUAN® as the professional manufacturer, we would like to provide you high quality Can Open Stepper Driver For Industrial Automation. And we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
Wholesale low price CAN Open Stepper Driver For Industrial Automation made in China. LICHUAN® is CAN Open Stepper Driver For Industrial Automation manufacturer and supplier in China.
The Canopen step drive of this series is manufactured based on a new generation 32-bit DSP technology, which is provided with the CANopen bus control function, supports the CIA301 protocol and CIA402.V2 sub-protocol and can carry up to 32 axes for multi-axis high-speed bus synchronization control. The drive supports the position mode, speed mode and homing mode. The standardized protocols make the entire control system more stable and reliable. The simple on-site wiring can help to effectively avoid the pulse loss problem of traditional drives under interference.
Communication specifications
| Communication specifications | Physical layer | Meeting the ISO 11898-2 physical layer standard |
|
Communication connector |
RJ45×2 | |
| Network architecture | Serial connection | |
| Transmission rate | 2 x1Mbps(half-duplex) | |
| Application layer protocol | CiA301 protocol and CiA402 sub-protocol | |
|
Number of slave stations |
Max.: 32 axes | |
| Communication object |
SDO: aperiodic data object PDO: periodic data object EMCY: emergency object |
|
| Supported control modes |
Profile Position Mode Profile Velocity Mode Homing Mode |
Product specifications
|
Drive model Parameter |
CL57-C | OL57-C |
| Matched motor | 42/57/60 | |
| Supply voltage | 24～48V DC | |
| Maximum output current | 5A | |
| DI port input current | 10～50mA | |
| DI port input voltage | 24V DC | |
| Encoder | 1000-line incremental | N/A |
| Serial port debugging | RS232 interface | |
| Insulation resistance | 100MQ | |
| Operating environment |
Temp.:0℃~45℃. Humidity:≤90% RH, without condensation Altitude:≤1000m. Installation environment: without corrosive and flammable gases, without oil mist or dust, etc Vibration:<0.5G(4.9m/s2),10~60 Hz(non-continuous operation) |
|
| Storage environment | -20～65℃(without frost),<90% RH(without condensation) | |
| Drive size | 134*83*33 | |
| Drive weight |
|
|
