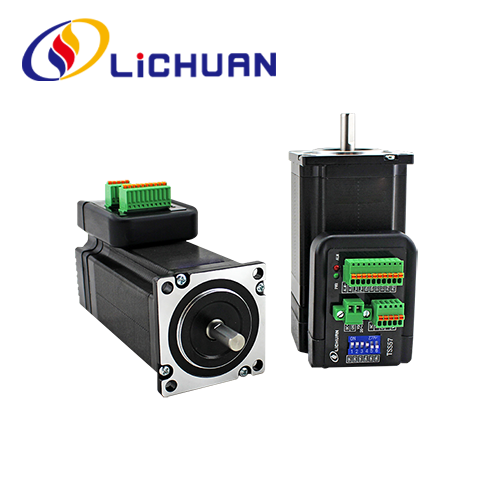

Integrated Nema23 open loop stepper motor

You can rest assured to buy Integrated Nema23 open loop stepper motor from LICHUAN® factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

LICHUAN® warmly welcome you to wholesale Integrated Nema23 open loop stepper motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

Integrated Nema23 open loop stepper motor Introduction

Integrated Nema23 open loop stepper motor Adopt advanced alternating current technology, effectively reduce heat Generation of the Motor and driver Over-voltage, under-voltage, over-current and out of error protection functions;Stable speed, small overshoot and tracking error, low heat generation of motor and driver;Single/double pulse mode, pulse effective edge is available;Pulse, direction and enable signal input port levels: 3.6~24V compatible; Serial port RS232 debugging function;
Optical coupler isolation error signal input, strong anti-interference capacity;Pulse number of each round can be set through debugging software or dial (subdivision);Built-in microstep subdivision algorithm, realize low subdivision control order and high subdivision operation effects.

Microstep Subdivision Settings

Step/Turn	SW1	SW2	SW3	SW4
Default	on	on	on	on
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
51200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off

Electric Parameters

dass	TSS57/TSM57
dass	Min	Type	Max	Unit
Input voltage	24	36	40	VDC
Drive current	1		8	A
Input Pulse Frequency	1		200K	HZ
Input signal voltage	3.6	5	24(connect resistance)	VDC
Continuous on current	4.5A20KHz PWM
Default Communication Speed	57.61Kbps
Protection Function	1.Over - current action peak value: 8A±10% 2. Over-voltage Action Value 60V DC 3.Out of Error Alarm Threshold

Technical Data

Series	Step Angle ()	Motor Length(mm)	Holding Torque(N.m)	Rated Current(A)	Rotor Inertla(g.cm²)	Motor Weight (Kg)	Encoder Resolution(PPR)
TSS57-36V-10	1.8	90	1.0	3.0	300	1.2	1000
TSS57-36V-20	1.8	110	2.0	3.5	500	1.6	1000
TSS57-36V-30	1.8	130	3.0	4.0	720	2.0	1000
TSM57-36V-10	1.8	90	1.0	3.0	300	1.2	None
TSM57-36V-20	1.8	110	2.0	3.5	500	1.6	None
TSM57-36V-30	1.8	130	3.0	4.0	720	2.0	None

Above are representative products. Products can be customized!

Shape and installation size (unit:mm)

Shaft Mode of Motor

Model	Shaft Dlameter(mm)	Shaft Extension(mm)	Shaft Length(mm)
TSS57-36V-10	φ8	D-cut 0.5X15	21
TSS57-36V-20	φ8	D-cut 0.5X15	21
TSS57-36V-30	φ8	D-cut 0.5X15	21
TSM57-36V-10	φ8	D-cut 0.5X15	21
TSM57-36V-20	φ8	D-cut 0.5X15	21
TSM57-36V-30	φ8	D-cut 0.5X15	21
