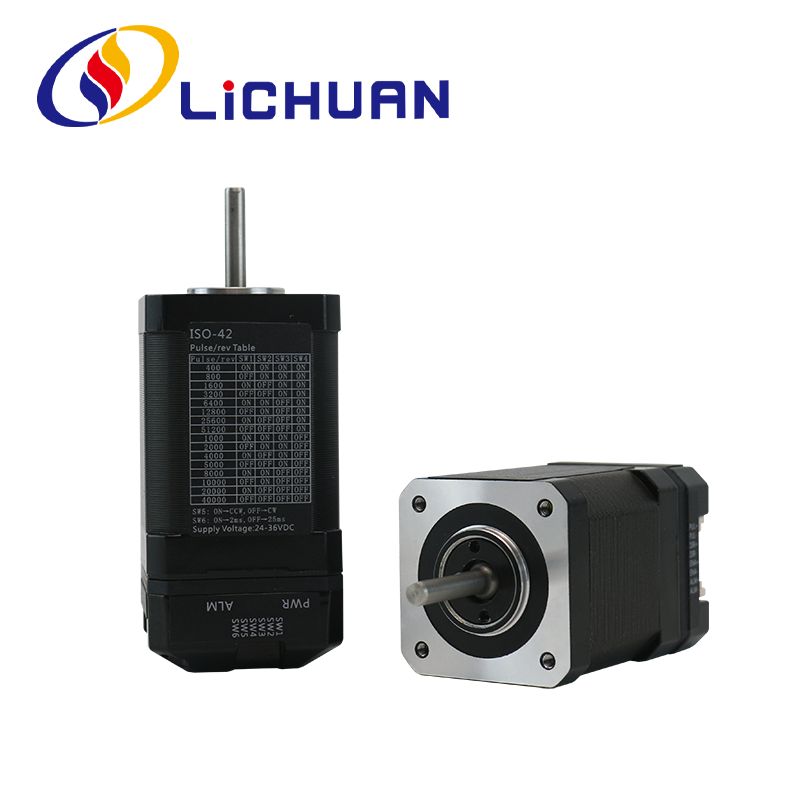

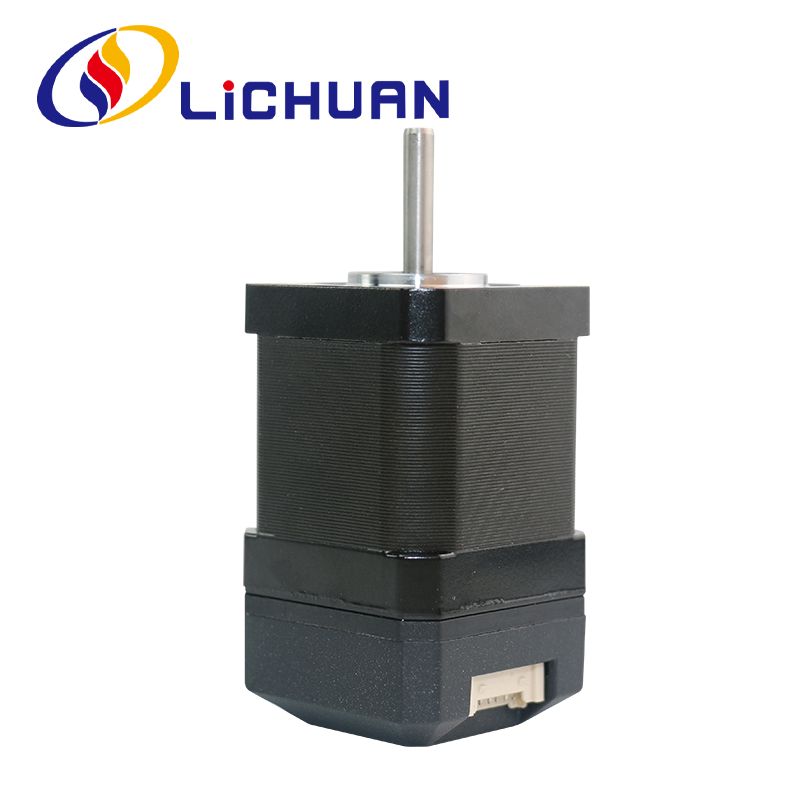

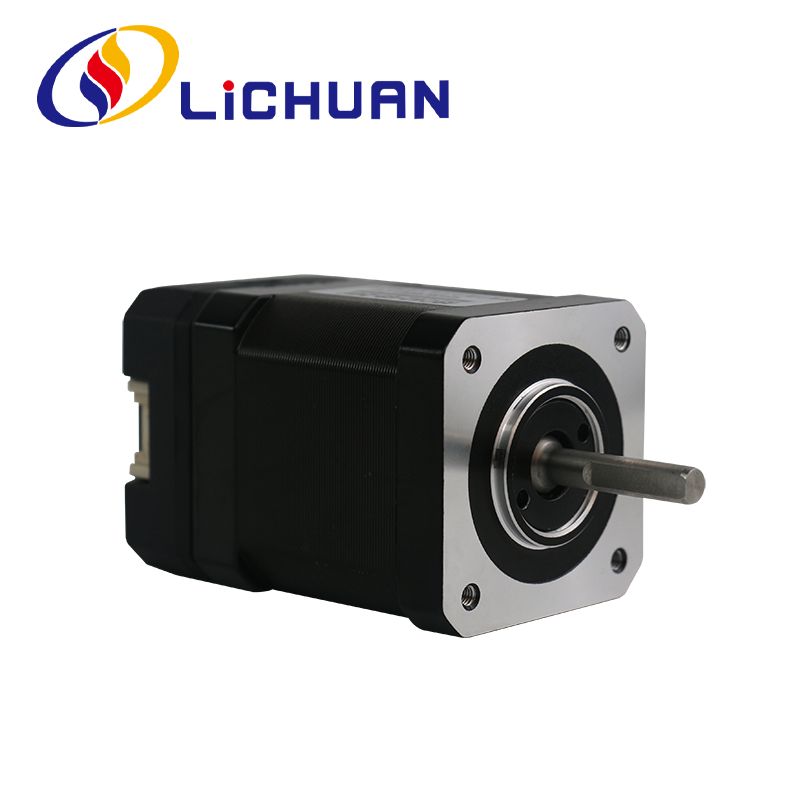

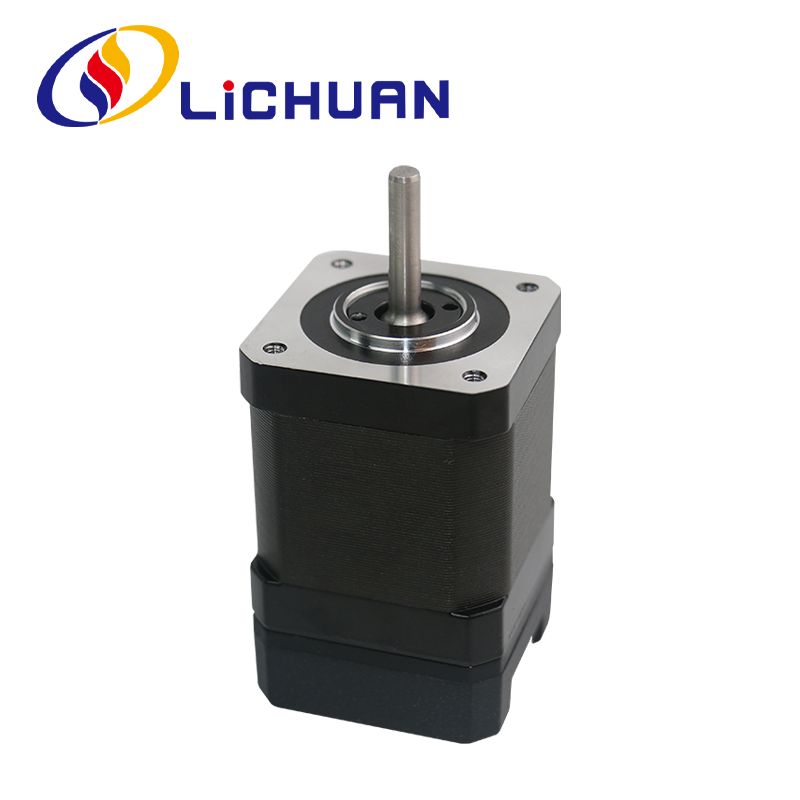

Nema17 Integrated Closed Loop Stepper Motor

LICHUAN® warmly welcome you to wholesale Nema17 integrated closed loop stepper motor from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices

Nema17 integrated closed loop stepper motor The latest generation of 32-bit ARM microcontroller is adopted, combined with servo control technology, allowing the motor to operate smoothly
The torque attenuation during high-speed operation is much smaller than that of open-loop drivers, completely overcoming the problem of lost step in open-loop stepper motors and significantly reducing it Reducing the phenomenon of motor heating and vibration greatly improves the machining accuracy of the equipment. This series of all-in-one machines has a compact and beautiful body, and wiring Convenient and easy to connect with quick plugs, suitable for various micro/small devices.

·Power supply voltage range: DC: 24V~36V (recommended 24V)
·Maximum output current: 3A
·Pulse form: pulse+direction
·Logic input current: 7~20mA
·Pulse response frequency: 0-200kHz

·Storage temperature: -20 ℃~80 ℃
·Operating temperature: 0 ℃~55 ℃
·Operating humidity: 90% RH (non condensing)
·Vibration frequency: less than 0.5G (4.9m/s 2) 10Hz~60Hz (non continuous operation)
