Three Phase Hybrid Motor Driver For Precise Control
  • Three Phase Hybrid Motor Driver For Precise ControlThree Phase Hybrid Motor Driver For Precise Control

Three Phase Hybrid Motor Driver For Precise Control

Hot sale quality Three Phase Hybrid Motor Driver For Precise Control with Low Price made in China. LICHUAN® is Three Phase Hybrid Motor Driver For Precise Control manufacturer and supplier in China.

Send Inquiry

Product Description

LICHUAN® is China manufacturer & supplier who mainly produces Three Phase Hybrid Motor Driver For Precise Control with many years of experience. Hope to build business relationship with you.

Product Introduction

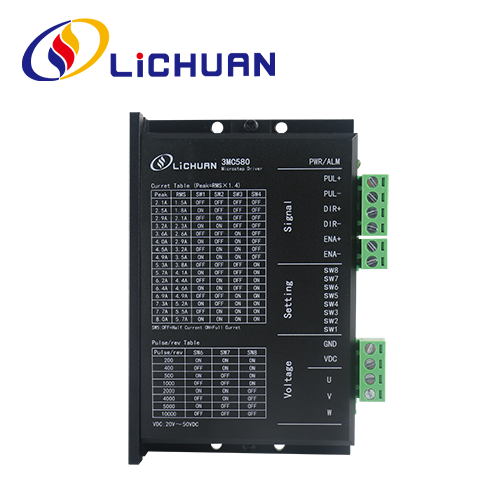

The 3MC580 is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. The 3MC580 is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make

3MC580 Features

· Supply voltage to +50 VDC;
· Output current programmable, from 1.5A to5.7A;
· Pulse input frequency up to 200kHz;
· 8 Microstep resolutions programmable, from200 to 10000 steps/rev; · TTL compatible and optically isolated input;
· Pure-sinusoidal current control technology;
· Self-adjustment technology;
· Support PUL/DIR and CW/CCW modes;
· Short-voltage, over-voltage, over-current protections; · Automatic idle-current reduction.
· Suitable for 3/6 leads Three-phase motors.

Applications

Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Its unique features make the 3MC580 an ideal solution for applications that

Technical parameter

● Voltage input range: DC20V～50V
● Maximum peak current: 8.0A
● Subdivision range:200～10000ppr
● Pulse form: pulse +direction
● Impulse response frequency:0～200KHz
● Motor parameter auto-tuning function
● With overcurrent, overvoltage and other
● protection functions.

Environmental parameters

● Storage temperature:-20°C～65 ℃
● Operating temperature:0° ℃~50 ℃
● Operating humidity:40～90%RH(non-condensing)
● Vibration frequency: less than 0.5G(4.9m/s2)10Hz~ 55Hz (discontinuous operation)
● Avoid dust, oil stains, corrosive gases, places with too much humidity and too strong vibration, and prohibit flammable gas and conductive dust

Drive function description

Drive function Instructions
Microstep
subdivision setting 		15 microstep subdivisions can be set for the Driver through 4 dial switches SW5~SW8.The Driver shall be stopped while setting subdivision. See driver panel instruction for microstep subdivision settings
Output current setting 8 output currents can be set for the Driver through 3 dial switches SW1~SW3.See driver panel instruction for output current settings
Automatic half -flow function Automatic half current function can be set for the Driver through switch SW4. OFF means that quiescent current is set to half of
operating current; ON means that quiescent current and dynamic current are the same. SW4 shall be set as OFF for general use to
reduce heat generation of the motor and the driver and to improve reliability. About 0.3s after pulse train stops, current will automatically reduce 50%(actual value 55%) and theoretically, heat generation will reduce 65%.
Signal interface PUL+ and PUL- are positive and negative terminals of pulse signal control; DIR+ and DIR- are positive and negative terminals of direction signal; ENA+ and ENA- are positive and negative terminals of enable signals.
Motor interface A+ and A- connect to positive and negative terminals of A phase winding of stepper motor; B+ and B- connect to positive and negative terminals of B phase winding of stepper motor. When A and B phase windings are switched, the Motor direction will be reversed.
Power connector DC/AC power supply, operation input voltage range: 20~110 DC AC or 18V~80V,48V input voltage is suggested, power supply shall be higher than 300W.
Indicator light There is 1 green indicator light and 1 red indicator light on the Driver. The green one is power indicator light, it illuminates when the Driver is connected to power supply; the red one is failure indicator light, it illuminates when over-voltage or over-cumrent failure occurs. Red indicator light goes off after failure is eliminated. Failure of the Driver can only be eliminated by re-connecting to power supply and reusing.
Installation
Notes 		Dimensions of the Driver: 118x75.5.5x35.5mm, installation pitch of holes: 112.5mm. Both horizontal and vertical installations can be selected (vertical installation is suggested)The Driver shall be installed closely against metal cabinet for heat dissipation

Parameter Setting

ubdivision precision, operating and half/full currents can be set for 3MC580 Driver through 8-bit dial switch as follows:


Working current setting

Peak RMS SW1 SW2 SW3 SW4
2.1A 1.5A off off off off
2.5A 1.8A on off off off
2.9A 2.1A off on off off
3.2A 2.3A on on off off
3.6A 2.6A off off on off
4.0A 2.9A on off on off
4.5A 3.2A off on on off
4.9A 3.5A on on on off
5.3A 3.8A off off off on
5.7A 4.1A on off off on
6.2A 4.4A off on off on
6.4A 4.6A on on off on
6.9A 4.9A off off on on
7.3A 5.2A on off on on
7.7A 5.5A off on on on
8.0A 5.7A on on on on

Installation size (unit: mm)


Microstep subdivision setting

Pulse/rev SW6 SW7 SW8
200 on on on
400 off on on
500 on off on
1000 off off on
2000 on on off
4000 off on off
5000 on off off
10000 off off off
