Cost-effective 2 Phase Stepper Motor Step Driver

Buy Discount Cost-effective 2 Phase Stepper Motor Step Driver with Free Sample made in China. LICHUAN® is Cost-effective 2 Phase Stepper Motor Step Driver manufacturer and supplier in China.

Send Inquiry

Product Description

China Factory Cost-effective 2 Phase Stepper Motor Step Driver In Stock. LICHUAN® is Cost-effective 2 Phase Stepper Motor Step Driver manufacturer and supplier in China.

Product Introduction

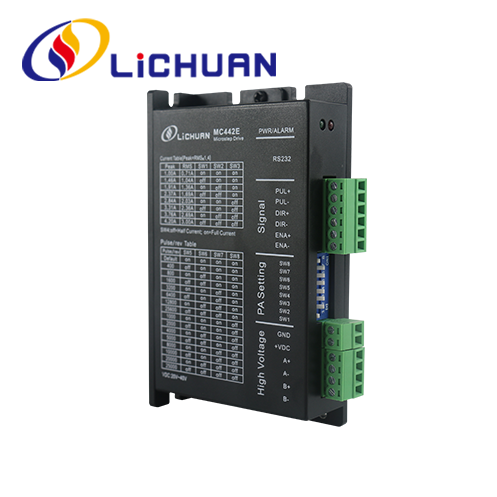

MC442E adopts the latest special motor control DSP chip and servo control technologies, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. applies to 2 phase Nema17 Nema23 hybrid stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.

MC442E Features

● Voltage input range: DC20V～40V
● Maximum peak current: 4.2A
● Subdivision range: 200～25600ppr
● Pulse form: pulse + direction
● Impulse response frequency: 0～200KHz
● Motor parameter auto-tuning function With protection functions such as overvoltage, overcurrent, tracking error out of tolerance, etc.

Technical parameter

● Voltage input range: DC20V~40V
● Maximum peak current: 4.2A
● Subdivision range:200～25600ppr
● Pulse form: pulse + direction
● Impulse response frequency:0～200KHz
● Motor parameter auto-tuning function
● With protection functions such as overvoltage, overcurrent, tracking error out of tolerance,etc.

Environmental parameters

● Storage temperature:-20° ℃~65 ℃
● Operating temperature:0° ℃~50 ℃
● Operating humidity:40～90%RH(non-condensing)
● Vibration frequency: less than 0.5G(4.9m/s2)10Hz~ 55Hz (discontinuous operation)
● Avoid dust, oil stains, corrosive gases, places with too much humidity and too strong vibration, and prohibit flammable gas and conductive dust

Drive function description

Drive function	Instructions
Microstep subdivision setting	16 microstep subdivisions can be set for the Driver through 4 dial switches SW5~SW8.The Driver shall be stopped while setting subdivision. See driver panel instruction for microstep subdivision settings.
Output current setting	8 output currents can be set for the Driver through 3 dial switches SW1~SW3. See driver panel instruction for output current settings
Automatic half flow function	Automatic half current function can be set for the Driver through switch SW4. OFF means that quiescent current is set to half of operating current; ON means that quiescent current and dynamic current are the same. SW4 shall be set as OFF for general use to reduce heat generation of the motor and the driver and to improve reliability. About 0.3s after pulse train stops, current will automatically reduce 50%(actual value 55%) and theoretically, heat generation will reduce 65%.
Signal interface	PUL+ and PUL- are positive and negative terminals of pulse signal control; DIR+ and DIR- are positive and negative terminals of direction signal; ENA+ and ENA- are positive and negative terminals of enable signals.
Motor interface	A+ and A- connect to positive and negative terminals of A phase winding of stepper motor; B+ and B- connect to positive and negative terminals of B phase winding of stepper motor. When A and B phase windings are switched, the Motor direction will be reversed.
Power connector	DC power supply, operation input voltage range: 18V~36V DC, 24V DC operation voltage is suggested, power supply shall be higher than 100W.
Indicator light	There is 1 green indicator light and 1 red indicator light on the Driver. The green one is power indicator light, it illuminates when the Driver is connected to power supply; the red one is failure indicator light, it illuminates when over-voltage or over-current failure occurs. Red indicator light goes off after failure is eliminated. Failure of the Driver can only be eliminated by re-connecting to power supply and reusing.
Installation Notes	Dimensions of the Driver:116x69.2x26.5mm, installation pitch of holes: 109mm. Both horizontal and vertical installations can be selected (vertical installation is suggested). The Driver shall be installed closely against metal cabinet for heat dissipation

Parameter Setting

Subdivision precision, operating and half/full currents can be set for MC442E Driver through 8-bit dial switch as follows:

Working current setting

Output peak current	Output average curent	SW1	SW2	SW3
1.0A	0.71A	on	on	on
1.46A	1.04A	off	on	on
1.91A	1.36A	on	off	on
2.37A	1.69A	off	off	on
2.84A	2.03A	on	on	off
3.31A	2.36A	off	on	off
3.76A	2.69A	on	off	off
4.2A	3.0A	off	off	off

Installation size (unit: mm)

Microstep subdivision setting

Steps/revolution	SW5	SW6	SW7	SW8
Default	on	on	on	on
400	off	on	on	on
800	on	off	on	on
1600	off	off	on	on
3200	on	on	off	on
6400	off	on	off	on
12800	on	off	off	on
25600	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
25000	off	off	off	off
